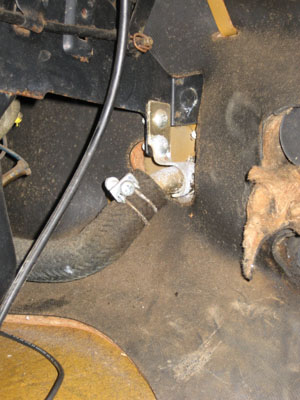

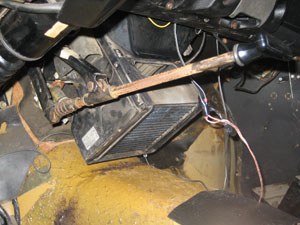

Carpet, padding and heater cover removed |
Heater Rebuild more photos added 11/19 |

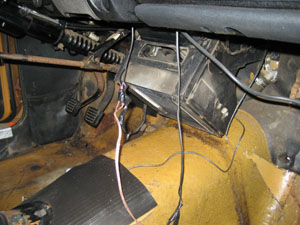

wiring spaghetti |

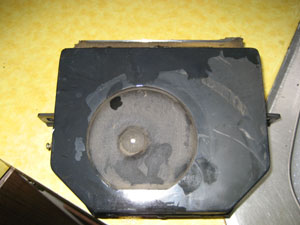

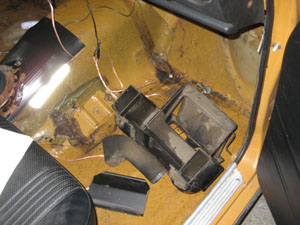

Parts...and more parts |

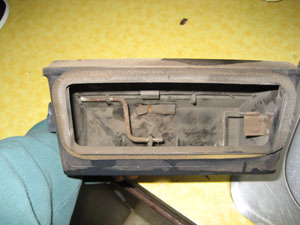

More wiring stuff |

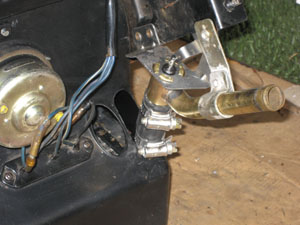

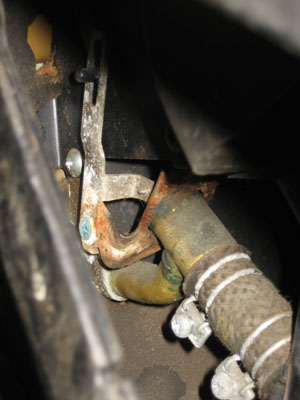

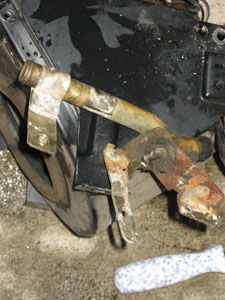

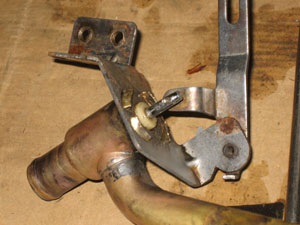

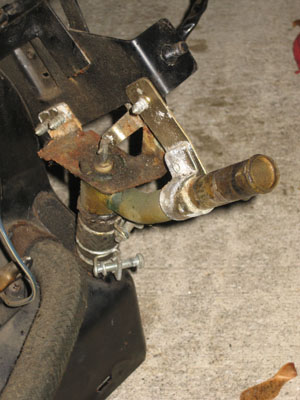

outlet from heater through firewall |

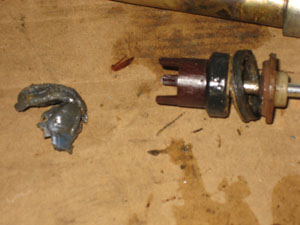

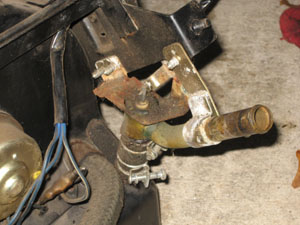

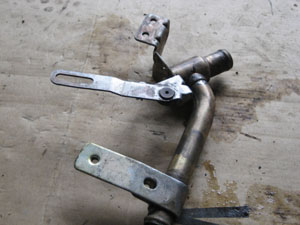

The culprit...a sticky heater valve |

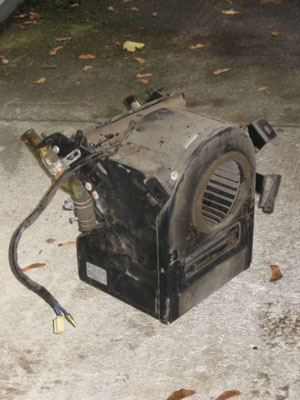

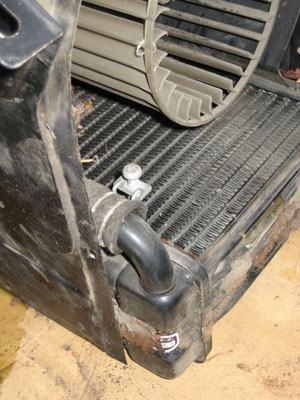

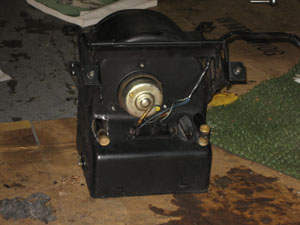

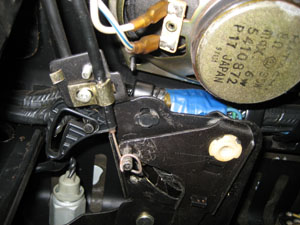

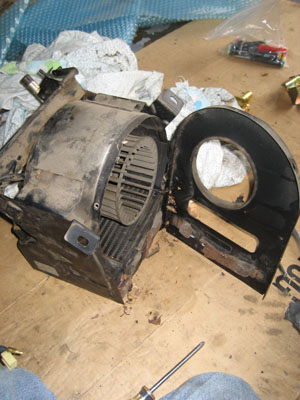

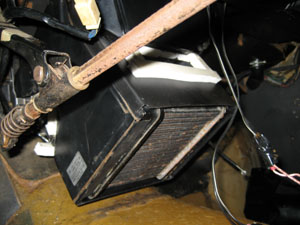

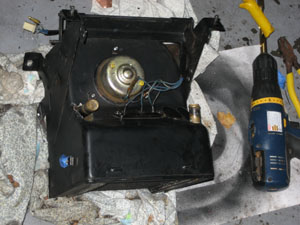

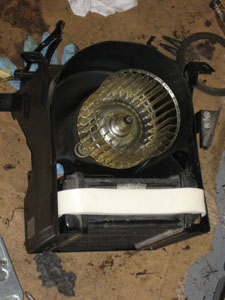

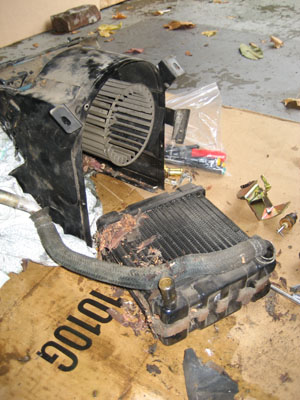

Heater core and fan assembly front |

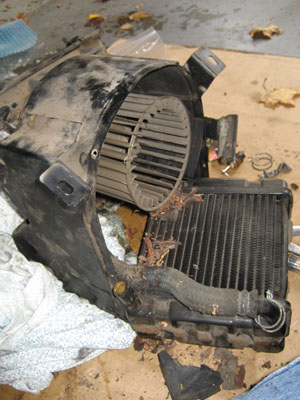

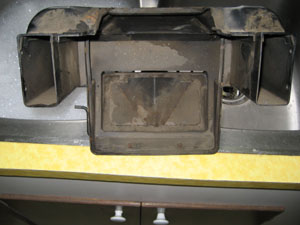

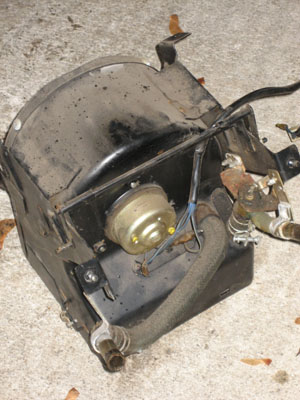

Heater core and fan assembly back |

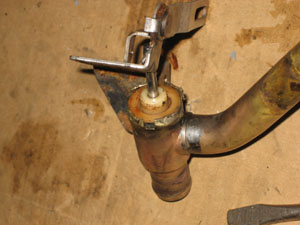

another view of the valve |
and another |

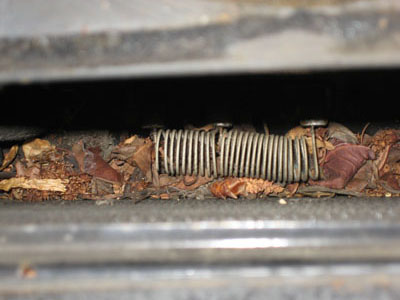

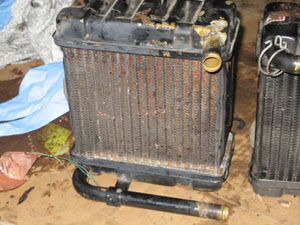

30-year old leaves on the heater core |
looks like it's been undisturbed for quite a while |

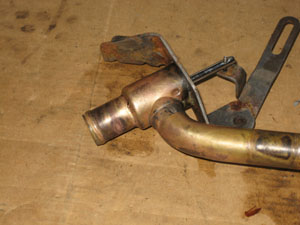

nasty looking valve |

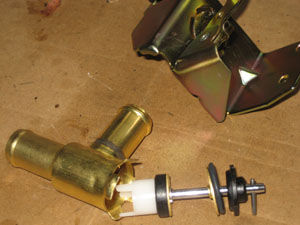

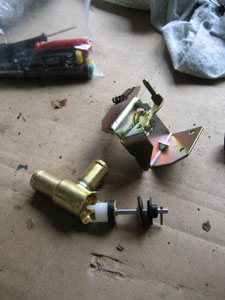

A new shiny valve that I tore apart for parts. Nissan Part Number 27017-B5000. It's from a 620 pickup 70's era I think. |

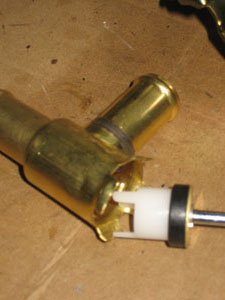

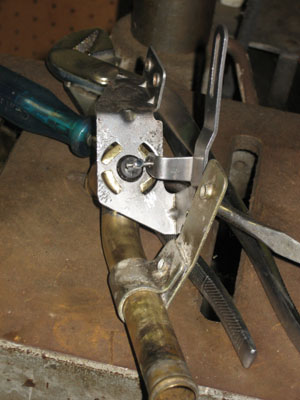

You bend the brass flanges up and you can pull the innards out |
what the overnight vinegar bath did for the old valve assembly...clean huh? |
|
and another view |
holding my breath bending the brass flanges on the old valve |
Whew! They didn't break! |

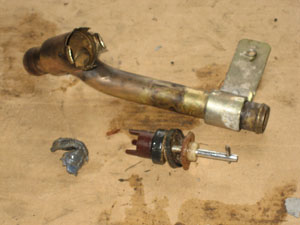

Old valve guts |
and a bit of stop leak perhaps...it came out with the old valve |

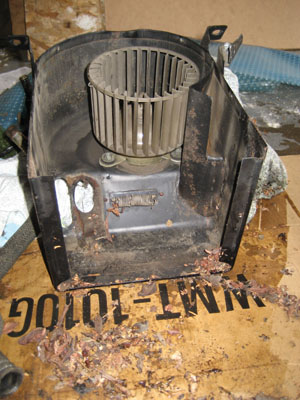

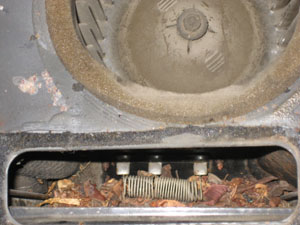

Pretty dusty squirrel fan and crumbly foam |
gently pull on the heater core |
and a little more |
and it's out! |
lots of debris and surface rust |

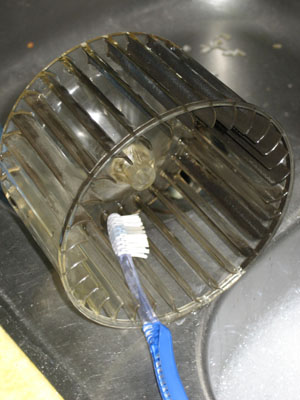

cleaning the squirrel fan... |

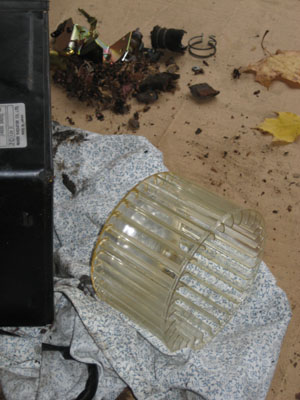

it's actually clear plastic, not black! |

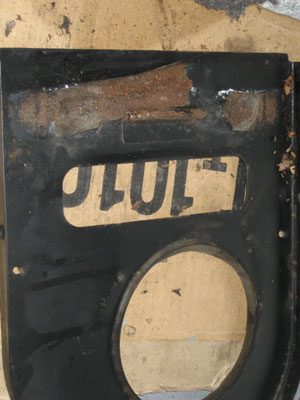

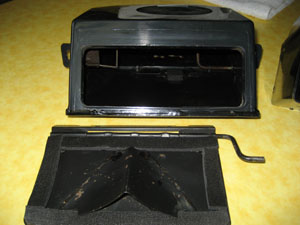

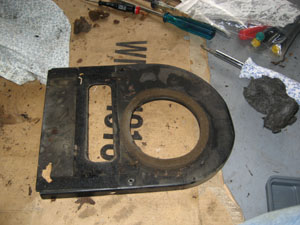

heater core/ fan cover...more crumbly foam |
scrubbed and sanded |

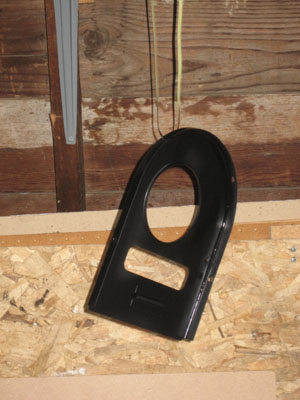

waiting for the paint to dry |

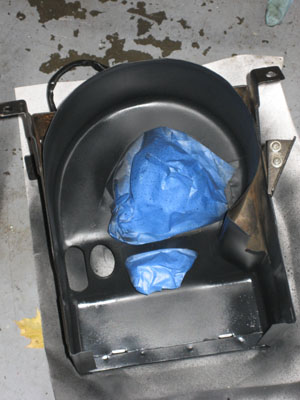

taped off the motor and thermostat spring for painting |
WHOOPS! What tha? |
hmm, these heater cores are different! |
this one has a long output on the other side of the core |

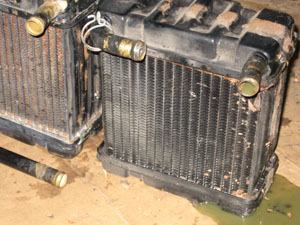

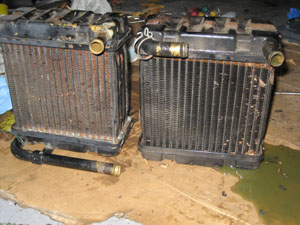

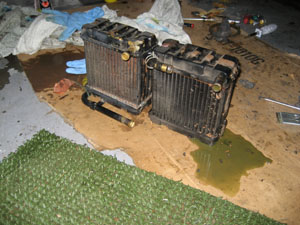

New one on the left, old one on the right |

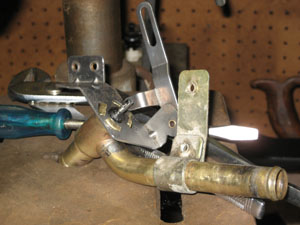

valve with new guts installed and brass flanges bent back into place |
Shiny huh? |
Back of the case with the new core installed...after punching another hole in the back of the case for the new and different heater core |

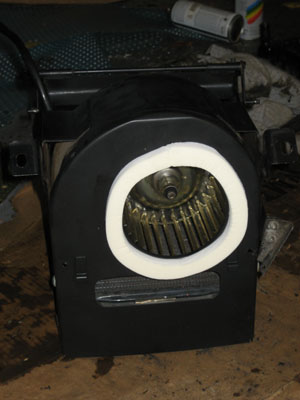

nice new white foam weatherstripping |
a retrofit of more foam |
ready to install the valve. |
|
The new valve installed. |

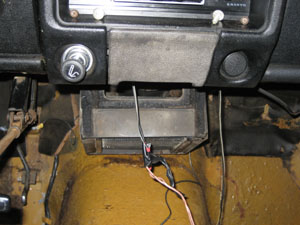

Under the dash the connections were disconnected and the cables were bent. I fixed 'em all up while I was there. |

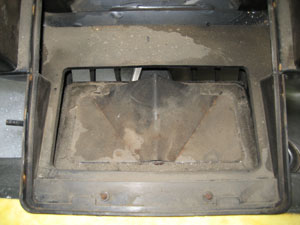

A dusty, dirty mess inside... |
The foam just disentegrated when I touched it. |
a little surface rust |

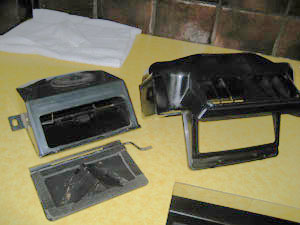

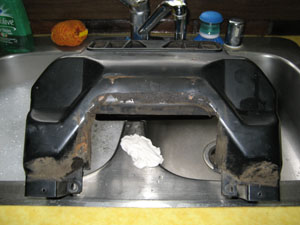

washed and old foam removed |
more rust and dirt inside |

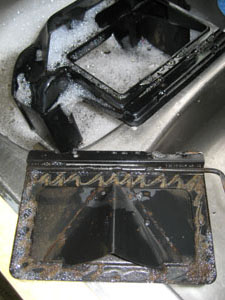

A soapy bath for everything |
|
top one is washed and treated with Pledge - bottom one is just washed |

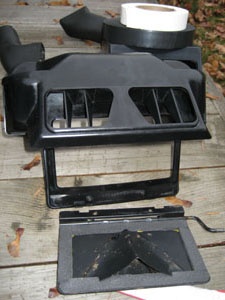

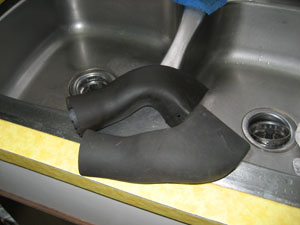

everything's all clean |
It's hard to see but I've fitted up black foam into the door and I'm ready to glue it in place. |
foam glued in place |
heater installed...only one little leak and it stopped when I re-tightened the hose clamp. |
